Plotting discrete choropleth shapes
import cartopy.feature as cf
import cartopy.crs as ccrs
import geopandas as gpd
import pandas as pd
import os
from matplotlib import pyplot as plt
import geomappy as mp
import geomappy.plot_utils
os.chdir("../../../")
Loading data on riverbank plastic observations in the Netherlands (Van Emmerik et al., 2020)
df = pd.read_csv("data/processed_data_SDN/df_hm_included.csv", index_col=0)
df_locations = gpd.read_file("data/processed_data_SDN/df_locations.geojson")
df.columns, df_locations.columns
(Index(['Gebiedscode', 'meting', 'date', 'doy', 'dop', 'plastic_6_packringen',
'plastic_tassen', 'plastic_kleine_plastic_tasjes',
'plastic_drankflessen_groterdan_halveliter',
'plastic_drankflessen_kleinerdan_halveliter',
...
'U_2d_mean', 'U_7d_mean', 'U_14d_mean', 'U_1m_mean', 'U_6m_mean',
'h_2d_max_above_current', 'h_7d_max_above_current',
'h_14d_max_above_current', 'h_1m_max_above_current',
'h_6m_max_above_current'],
dtype='object', length=161),
Index(['Gebiedscode', 'river', 'x_maas', 'x_waal', 'geometry'], dtype='object'))
temp_df = df_locations.merge(df.groupby("Gebiedscode")['granulaat_korrels'].count(),
left_on='Gebiedscode',
right_index=True)
temp_df.loc[temp_df.Gebiedscode.str.contains("REFE"), 'granulaat_korrels'] = 5
temp_df = temp_df.sort_values('granulaat_korrels', ascending=True)
This example requires a little more setup, but the important part
happens in the call to plot_classified_shapes. Here discrete values
(occurences of observations) are mapped to colors (generated with an
incorporated discrete color function) and labels.
class ProjectCustomExtent(ccrs.Projection):
"""
Creating a custom extent for a given epsg code, if the hardcoded values do not suffice
"""
def __init__(self, epsg, extent, *args, **kwargs):
super(ccrs.Projection, self).__init__(f"EPSG:{epsg}")
xmin, xmax, ymin, ymax = extent
self.xmin = xmin
self.xmax = xmax
self.ymin = ymin
self.ymax = ymax
@property
def boundary(self):
coords = ((self.x_limits[0], self.y_limits[0]),
(self.x_limits[0], self.y_limits[1]),
(self.x_limits[1], self.y_limits[1]),
(self.x_limits[1], self.y_limits[0]))
return ccrs.sgeom.LineString(coords)
@property
def bounds(self):
xlim = self.x_limits
ylim = self.y_limits
return xlim[0], xlim[1], ylim[0], ylim[1]
@property
def threshold(self):
return 1e5
@property
def x_limits(self):
return self.xmin, self.xmax
@property
def y_limits(self):
return self.ymin, self.ymax

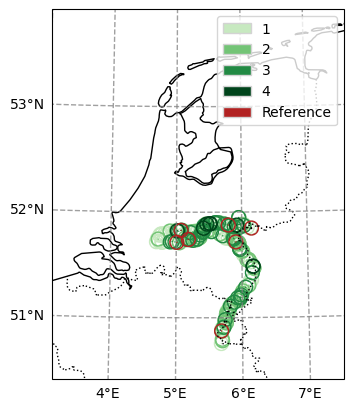

f, ax = plt.subplots(subplot_kw={'projection': ProjectCustomExtent(epsg=28992, extent=[-1000000, 500000, -100000, 800000])})
ax.set_extent((3.17, 7.5, 50.4, 53.9), crs=ccrs.PlateCarree())
ax.coastlines(resolution='10m')
geomappy.plot_utils.add_ticks(ax, 1)
geomappy.plot_utils.add_gridlines(ax, 1, alpha=0.75)
ax.add_feature(
cf.NaturalEarthFeature('cultural', 'admin_0_boundary_lines_land', '10m', facecolor='none', edgecolor='k'),
label='Stereo', lw=1, linestyle=":")
ax.add_feature(cf.NaturalEarthFeature('physical', 'lakes', '10m', facecolor='none', edgecolor='black'))
ax, legend = mp.plot_classified_shapes(
df=temp_df,
values='granulaat_korrels',
s=1,
legend='legend',
ax=ax,
colors=mp.colors.colors_discrete("Greens", 5)[1:].tolist() + ["Firebrick"],
linewidth=10,
labels=["1", "2", "3", "4", "Reference"],
transform=ccrs.PlateCarree(),
)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)

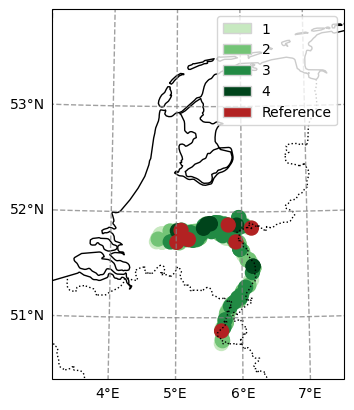

f, ax = plt.subplots(subplot_kw={'projection': ProjectCustomExtent(epsg=28992, extent=[-1000000, 500000, -100000, 800000])})
ax.set_extent((3.17, 7.5, 50.4, 53.9), crs=ccrs.PlateCarree())
ax.coastlines(resolution='10m')
geomappy.plot_utils.add_ticks(ax, 1)
geomappy.plot_utils.add_gridlines(ax, 1, alpha=0.75)
ax.add_feature(
cf.NaturalEarthFeature('cultural', 'admin_0_boundary_lines_land', '10m', facecolor='none', edgecolor='k'),
label='Stereo', lw=1, linestyle=":")
ax.add_feature(cf.NaturalEarthFeature('physical', 'lakes', '10m', facecolor='none', edgecolor='black'))
col, legend = mp.plot_classified_shapes(
df=temp_df,
values='granulaat_korrels',
s=100,
legend='legend',
ax=ax,
colors=mp.colors.colors_discrete("Greens", 5)[1:].tolist() + ["Firebrick"],
linewidth=1,
labels=["1", "2", "3", "4", "Reference"],
transform=ccrs.PlateCarree()
)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
/usr/local/Caskroom/mambaforge/base/envs/geomappy/lib/python3.12/site-packages/shapely/creation.py:730: RuntimeWarning: invalid value encountered in create_collection
return lib.create_collection(geometries, np.intc(typ), out=out, **kwargs)
